What Are the Dimension Accuracy Standards for Wire Dog Cages? A Complete Guide
In our experience auditing dog crate manufacturers, dimensional accuracy directly impacts product compatibility, assembly efficiency, and customer satisfaction. Precise dimensional control ensures cages fit designated spaces, stack properly for shipping, and accommodate target pet sizes correctly. For B2B importers and Amazon sellers, dimensional inconsistencies create costly returns and negative reviews.
Implementing rigorous dimensional quality control typically reduces tolerance violations by 75-85% compared to standard production methods. Precision manufacturing adds 2-3% to production costs but eliminates 15-20% in returns and customer complaints. Mastering dimensional standards differentiates professional suppliers from commodity manufacturers.
This guide explains tolerance requirements, measurement methodologies, and quality assurance protocols for precision-manufactured wire dog cages. Whether sourcing from Chinese manufacturers or establishing your own quality standards, understanding dimensional accuracy fundamentals ensures consistent product quality.
What We Usually See
From our quality inspections, dimensional errors exceeding 5mm cause assembly failures, stacking instability, and customer dissatisfaction. The most critical dimensions include overall cage size, door opening dimensions, wire spacing tolerances, and base frame squareness.
Understanding Critical Cage Dimensions and Tolerances
Dimensional accuracy begins with identifying which measurements matter most for functionality and user experience. Different cage components require different tolerance levels based on their functional importance.
Overall cage dimensions determine whether the product fits customer spaces and vehicles. Length, width, and height measurements typically require tolerances of ±3mm for professional-grade products. Consumer-grade cages may allow ±5mm tolerances, while premium commercial products demand ±2mm precision.
Wire spacing dimensions directly impact pet safety and containment effectiveness. The gap between horizontal and vertical wires must remain consistent throughout the cage structure. Standard tolerance for wire spacing is ±1mm, with critical safety areas requiring ±0.5mm precision.
Standard Tolerance Specifications by Product Grade
| Dimension Type | Premium Grade | Standard Grade | Economy Grade |
|---|---|---|---|
| Overall Length/Width | ±2mm | ±3mm | ±5mm |
| Overall Height | ±3mm | ±5mm | ±8mm |
| Wire Spacing | ±0.5mm | ±1mm | ±2mm |
| Door Opening | ±2mm | ±3mm | ±5mm |
| Base Frame Squareness | ±2mm diagonal | ±3mm diagonal | ±5mm diagonal |
What we usually check first: Door and opening dimensions require particular attention for functional compatibility. Door openings must accommodate standard pet sizes while preventing escape. Tray dimensions must match base frames precisely for proper fit.
Measurement Tools and Techniques for Quality Control
Accurate measurement requires appropriate tools and standardized procedures. Different dimensional characteristics demand specific measurement instruments and methodologies.
Digital calipers provide precise measurements for wire diameters, spacing dimensions, and component thicknesses. Quality control inspectors should use calipers with 0.01mm resolution for critical dimensions. Regular calibration ensures measurement accuracy over time.
Measuring tapes and rigid rules check overall cage dimensions and diagonal squareness. Metal measuring tapes with clear markings enable quick verification of length, width, and height measurements. Go/no-go gauges provide rapid pass or fail assessment for critical dimensions.
Advanced Measurement Equipment for Production Lines

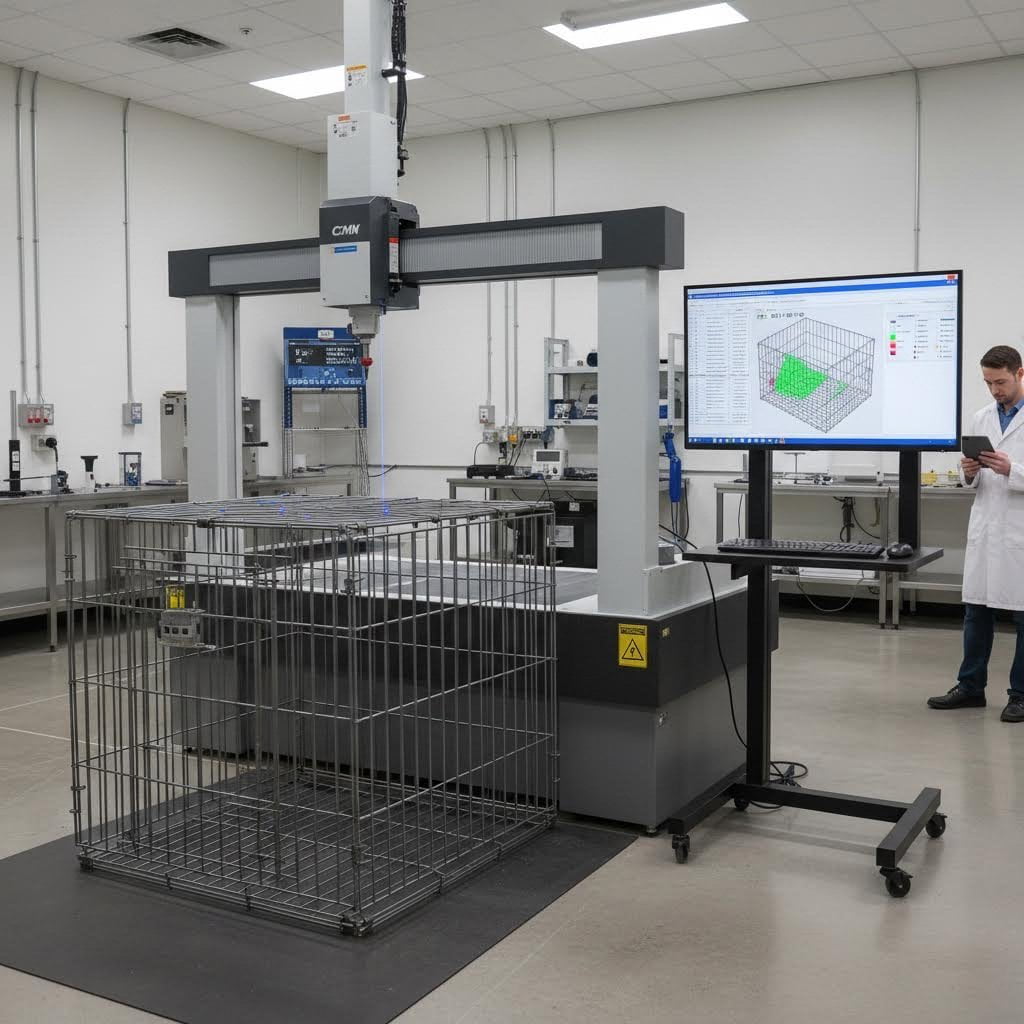

Coordinate measuring machines (CMM) offer automated dimensional verification for high-volume production. These systems use touch probes or optical sensors to measure multiple points precisely. CMM systems generate detailed reports showing dimensional variation across production batches.
Optical measurement systems use cameras and software to verify dimensions without physical contact. These systems work well for wire spacing verification and surface flatness checks. Vision systems can inspect 100% of production at high speeds.
| Measurement Tool | Best For | Accuracy Level | Typical Cost |
|---|---|---|---|
| Digital Calipers | Wire diameter, spacing | ±0.01mm | $50-200 |
| Measuring Tape | Overall dimensions | ±1mm | $10-30 |
| Go/No-Go Gauges | Rapid pass/fail checks | ±0.1mm | $100-500 |
| CMM Systems | Complex geometries | ±0.005mm | $20k-100k |
| Vision Systems | High-speed inspection | ±0.05mm | $10k-50k |
Our practical recommendation: For most B2B buyers, require suppliers to use digital calipers (essential) and measuring tapes (essential) as minimum equipment. CMM or vision systems indicate advanced quality commitment but aren’t necessary for standard products.
Common Dimensional Accuracy Issues and Root Causes
From our supplier audits, understanding typical dimensional problems helps implement targeted prevention strategies. Manufacturing variations arise from material inconsistencies, process parameters, and equipment limitations.
Wire diameter variations affect spacing measurements and overall cage dimensions. Raw material tolerances from steel suppliers typically range from ±0.05mm to ±0.1mm. These variations compound through the manufacturing process, potentially causing significant dimensional deviations in finished products.
Weld distortion represents a major source of dimensional error in wire cage manufacturing. Heat from welding causes metal expansion and contraction, leading to warping and dimensional changes. Uncontrolled welding parameters can cause length variations of 5-10mm in large cage assemblies.
Jig and Fixture Problems Affecting Consistency
Improperly designed or worn jigs allow dimensional variation between production runs. Jigs that don’t properly locate and secure wire components result in inconsistent assembly. Regular jig maintenance and verification prevent gradual dimensional drift.
Worn cutting tools create burrs and irregular wire ends that affect assembly precision. Dull shear blades deform wire ends rather than making clean cuts. These deformations accumulate during assembly, causing overall dimensional errors.
Common Buyer Mistake
Many buyers check only overall dimensions and miss frame squareness issues. Diagonal measurements must be checked on every cage during audits. A 5mm difference in diagonal measurements indicates unacceptable frame distortion requiring immediate supplier corrective action.
Implementing Statistical Process Control (SPC)
Statistical process control provides data-driven dimensional quality management. SPC techniques identify process variations before they cause dimensional failures.
Control charts track dimensional measurements over time to identify trends and special causes. X-bar charts monitor average measurements while R-charts track measurement range within samples. Control limits set at ±3 standard deviations identify processes requiring adjustment.
Process capability analysis determines whether manufacturing processes can consistently meet specifications. The Cpk index measures process capability considering both centering and variation. Cpk values below 1.33 indicate inadequate process capability for dimensional requirements.
Our Practical Recommendation
For new suppliers: require Cpk studies for critical dimensions before production approval, verify ongoing monitoring through sampling.
For production orders: request monthly SPC reports showing process stability and capability trends.
For strategic suppliers: implement shared quality dashboards with real-time dimensional data visibility.
Measurement system analysis (MSA) validates that inspection equipment provides reliable data. Gage repeatability and reproducibility (Gage R&R) studies quantify measurement system variation. Measurement systems with Gage R&R below 10% of tolerance are considered acceptable.
Dimensional Standards by Application
Different applications require different dimensional accuracy levels. Understanding these requirements helps set appropriate quality standards and pricing.
Pet retail applications prioritize appearance and shelf compatibility. Cages must fit standard retail shelf dimensions and stack stably for display. Dimensional consistency ensures attractive presentation and prevents tipping hazards. Retail buyers expect uniform sizing for planned merchandising layouts.
Veterinary and professional kennel applications demand highest dimensional precision. Multiple cages must align perfectly for banked installations. Door openings must accommodate various equipment and animal handling requirements. These applications typically require premium-grade tolerances throughout all components.
Home use and e-commerce applications balance quality with cost considerations. While professional tolerances may not be necessary, consistent dimensions ensure customer satisfaction. Clear dimensional specifications help online shoppers select appropriate sizes for their pets.
Transport and Logistics Considerations
Dimensional accuracy affects shipping efficiency and costs. Cages must fit standard pallet dimensions for efficient container loading. Precise sizing maximizes container space utilization and reduces freight costs per unit.
Knock-down (KD) cage designs require precise component dimensions for customer assembly. Assembly holes must align perfectly across multiple components. Poor dimensional control makes assembly difficult or impossible, generating customer complaints.
Supplier Evaluation and Quality Audits
Evaluating supplier dimensional control capabilities prevents quality problems before they occur. Critical audit items include measurement equipment calibration status (must have current certificates), jig maintenance logs (verify monthly checks), and SPC implementation (request 3 months of control charts).
On-site quality audits should inspect measurement equipment calibration status. Check calibration certificates and measurement uncertainty documentation. Verify that operators understand proper measurement techniques through practical demonstrations.
Review supplier process control documentation including SPC charts and capability studies. Request data showing process stability over extended production periods. Examine corrective action procedures for dimensional out-of-specification conditions.
Dimensional capability studies demonstrate supplier ability to meet specifications. Require Cpk studies for critical dimensions before production approval. Verify ongoing process monitoring through regular production sampling.
Correcting Dimensional Errors and Rework Procedures
Understanding rework feasibility helps buyers establish acceptance criteria: minor deviations within 10% of tolerance may be acceptable, while errors exceeding 20% typically require rejection or significant rework.
Minor dimensional deviations within engineering tolerances may not require rework. Establish clear acceptance criteria distinguishing acceptable variation from true defects. Document customer agreements regarding acceptable dimensional ranges.
Correctable dimensional errors require appropriate rework techniques. Hydraulic presses can correct minor frame distortions. Selective cutting and re-welding address localized dimensional problems. All rework must be re-inspected to verify dimensional compliance.
Scrap Versus Rework Decision Matrix
Not all dimensional errors justify rework effort. Establish clear decision criteria based on deviation magnitude, rework cost, and product value. When rework costs exceed 30% of product value, consider scrapping rather than correcting.
Severely distorted frames may require multiple correction operations, each introducing additional stress and potential failure points. Document scrap decisions with photographs and dimensional data for continuous improvement.
Digital Documentation and Traceability Systems
Modern quality management requires comprehensive digital documentation of dimensional measurements and control activities. Electronic records enable trend analysis, supplier scorecards, and continuous improvement initiatives.
Measurement data management systems store dimensional readings with timestamps, operators, and equipment used. Cloud-based systems provide real-time visibility for quality managers and customers. Automated alerts notify stakeholders when processes drift toward control limits.
Digital traceability links each cage to its complete dimensional history. Barcode or QR code systems track products through manufacturing and inspection. Complete traceability enables targeted recalls and supports warranty investigations when dimensional issues arise in the field.
Data Analytics for Continuous Improvement
Accumulated dimensional data enables powerful analytics for process optimization. Trend analysis identifies gradual process shifts before they cause out-of-specification conditions. Correlation studies reveal relationships between process parameters and dimensional outcomes.
Pareto analysis of dimensional failures focuses improvement efforts on highest-impact issues. Predictive maintenance of jigs and fixtures prevents dimensional drift caused by equipment wear.
Best Practice
Implement digital measurement recording even if using manual inspection methods. Tablet-based data entry reduces transcription errors and provides immediate upload to quality databases. Photo documentation of critical measurements adds visual confirmation.
FAQ: Wire Dog Cage Dimension Accuracy
Conclusion: Achieving Precision in Wire Cage Manufacturing
Key Takeaways
• Audit measurement systems: Verify calibration certificates and operator competency during factory visits
• Require SPC data: Request monthly control charts and Cpk studies for critical dimensions
• Check frame squareness: Diagonal measurements reveal distortion that overall dimensions miss
Mastering dimensional accuracy requires systematic attention to tolerances, measurement systems, and process control. By implementing the standards and procedures outlined in this guide, manufacturers and importers typically achieve consistent dimensional quality that meets customer expectations and reduces costly returns.
Precision manufacturing adds 2-3% to production costs through better equipment and tighter controls, while dimensional failures cost 15-20% through returns, rework, and brand damage. The investment in dimensional quality control delivers measurable returns through improved customer satisfaction and reduced warranty claims.
Build supplier relationships through quarterly dimensional performance reviews, shared SPC data, and joint improvement projects. Suppliers who receive constructive feedback typically improve dimensional capability 40-50% within 6 months. Document improvement trends to justify continued partnership and negotiate better terms.
Dimensional standards evolve as manufacturing technology advances. Stay current through industry associations, supplier technical seminars, and measurement equipment updates. Regular communication with suppliers about field performance helps both parties improve products and processes.
